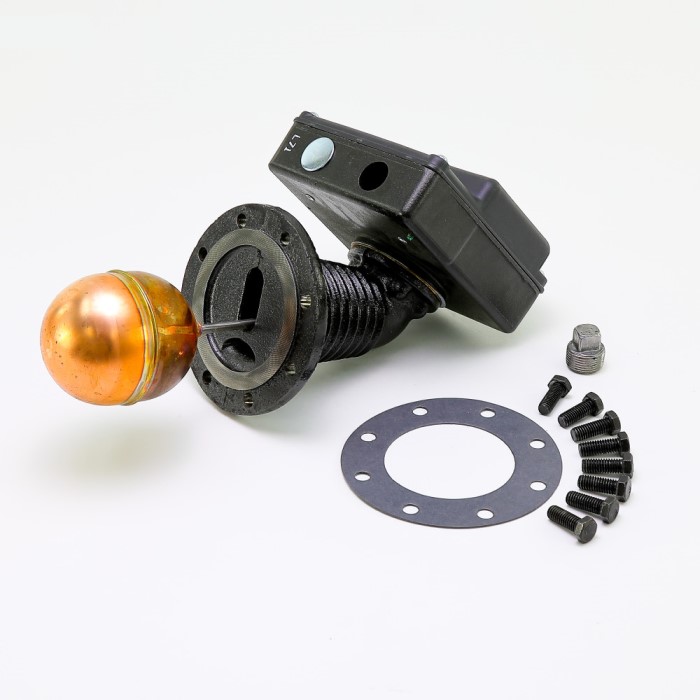

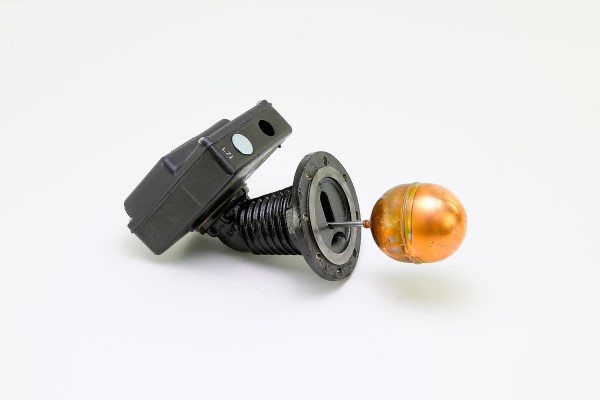

173003 Model 150S-HD McDonnell & Miller Head Mechanism

Datasheet The McDonnell Miller 173003 150S-HD For commercial and industrial low or high pressure boiler applications For boilers of any steaming capacity Monel bellows provides corrosion resistance Snap action switches for high temperature service 1 Single pole, single throw switch for pump control 1 Single pole, double throw switch for low water cut-off and alarm actuation Optional features Manual reset 2 Single pole, single throw switches 2 Single pole, double throw switches Float block BSPT threads Maximum pressure 150 psi (10.5 kg/cm2)
